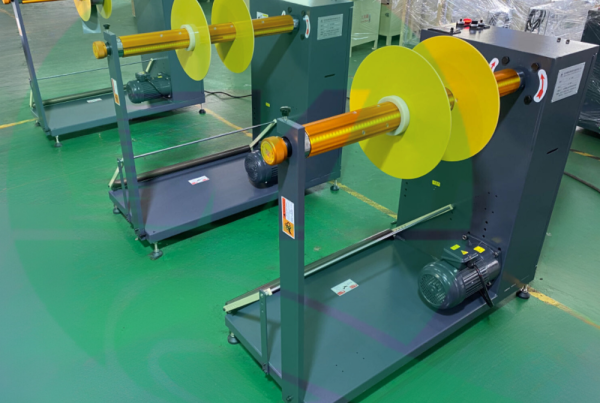

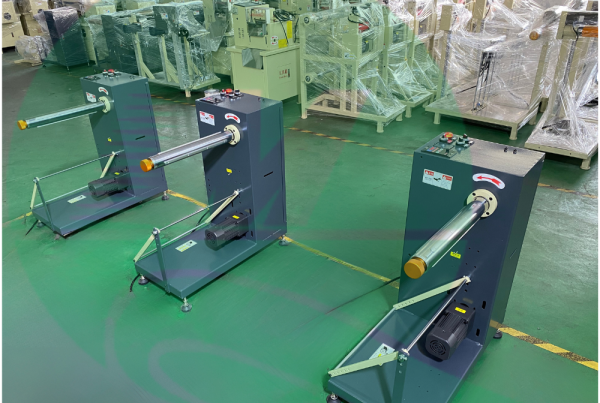

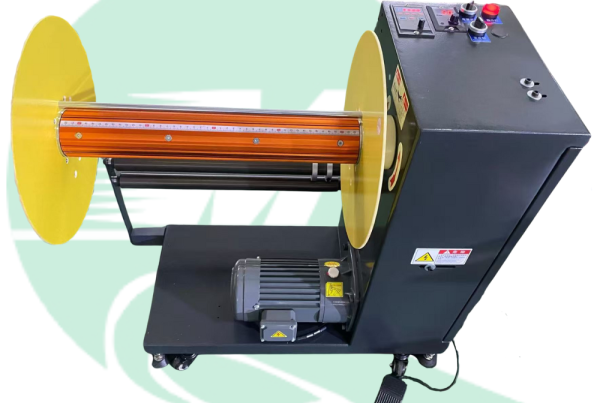

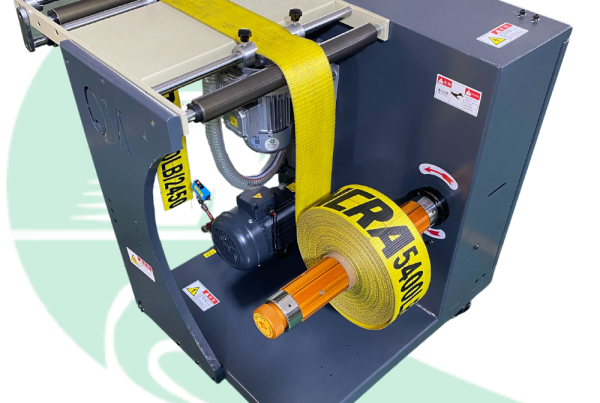

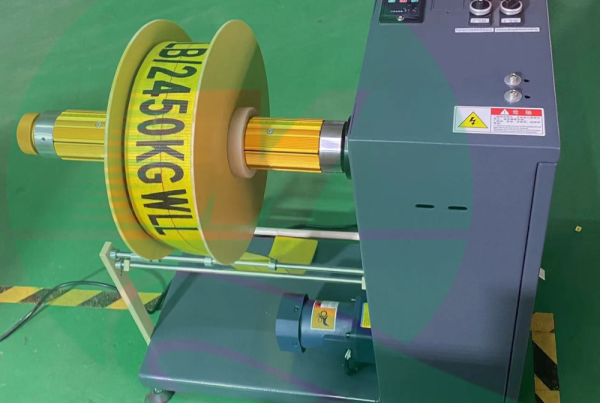

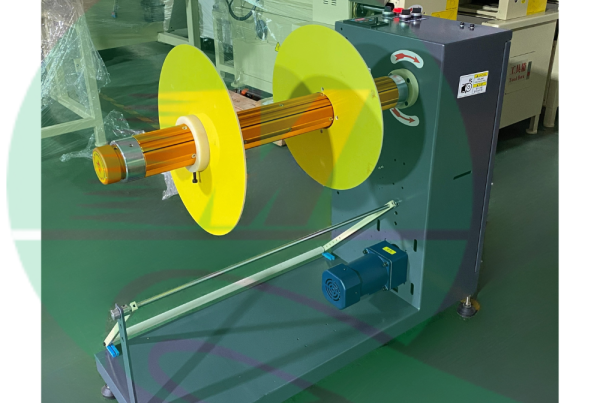

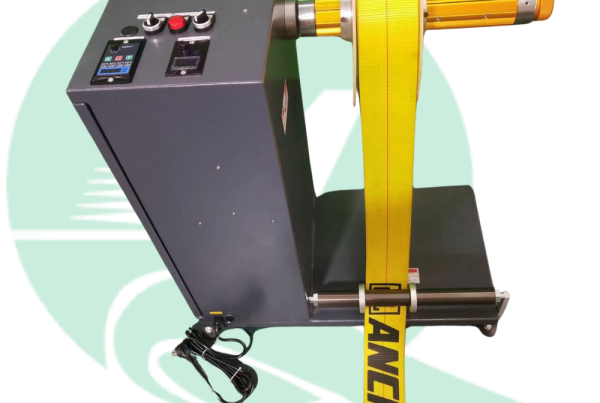

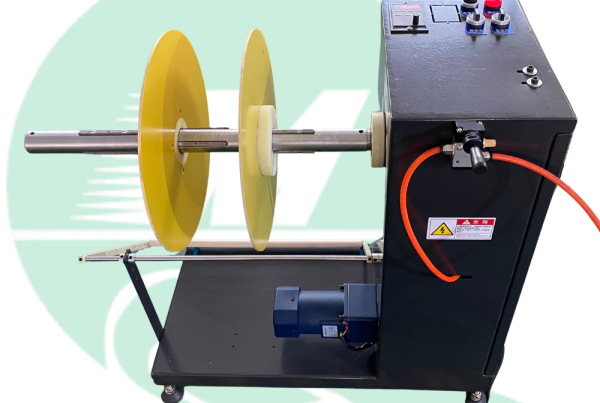

Core Position & Function
- Active winding equipment equipped with independent servo motor drive
- Core function: Neatly rewind processed coils (e.g., slit narrow-width coils, laminated finished coils) into standard coils
- Ensures even edges, no loose winding, and no wrinkles of rewound coils, facilitating subsequent storage, transportation, and secondary processing
Core Configuration & Parameters
- Drive System: Servo motor drive for stable and precise operation

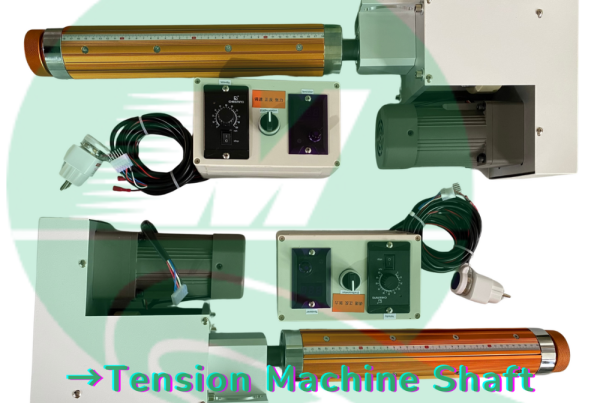

- Winding Shaft: Pneumatic expansion winding shaft (facilitates quick loading/unloading)
- Maximum Winding Diameter: Customizable (up to 1600mm)
- Speed Matching: Winding speed synchronously matched with upstream processing equipment (0-300m/min)
- Winding Precision: ±0.1mm
- Tension Control: Equipped with tension control system (servo tension or magnetic powder clutch control)
Enables precise adjustment of winding tension according to coil material and thickness
Avoids stretching deformation of thin materials and loose winding/shift of thick materials
- Additional Functions (High-End Models):
- Integrated automatic deviation correction system (automatically corrects winding deviation)
- Edge trimming device (trims coil edge waste)
- Coil counting function
Core Advantages
- High winding precision and strong stability
- Ensures consistent quality of rewound coils
- Wide adaptability to different materials and thicknesses
- Reduces manual intervention and improves production efficiency
Typical Applications
- Applicable Coils: Slit narrow-width coils, laminated finished coils, electronic material coils, packaging film coils, etc.
- Application Industries: Packaging, electronics, new energy, textile, printing, etc.
